Water Tank DX52D Z160 0.8mm Galvanised Sheet DIN 17162 ASTM 304 Plate

1 ton
MOQ
Negotiation
Price
Water Tank DX52D Z160 0.8mm Galvanised Sheet DIN 17162 ASTM 304 Plate
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Galvanized Steel Sheets
Technique: Cold-rolled
Thickness: 0.8mm
Grade: DX52D
Application: Water Tank
Width: Customization
Standard: ASTM
Length: 6m
Color: Natutral Color
SGS: Provided
Highlight:

Water Tank 0.8mm galvanised sheet

,

DX52D Z160 0.8mm Galvanised Sheet

,

DIN 17162 ASTM 304 plate

Basic Infomation
Place of Origin: China
Brand Name: XUDA
Payment & Shipping Terms
Packaging Details: Standard seaworthy packing
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 ton per month
Product Description

Product Description

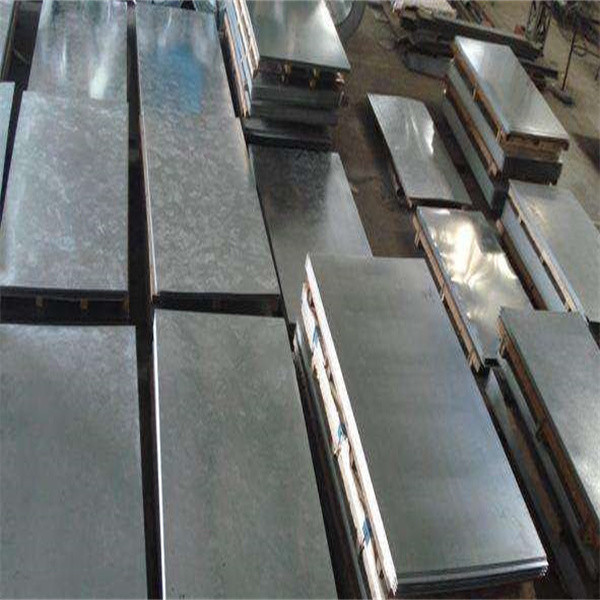

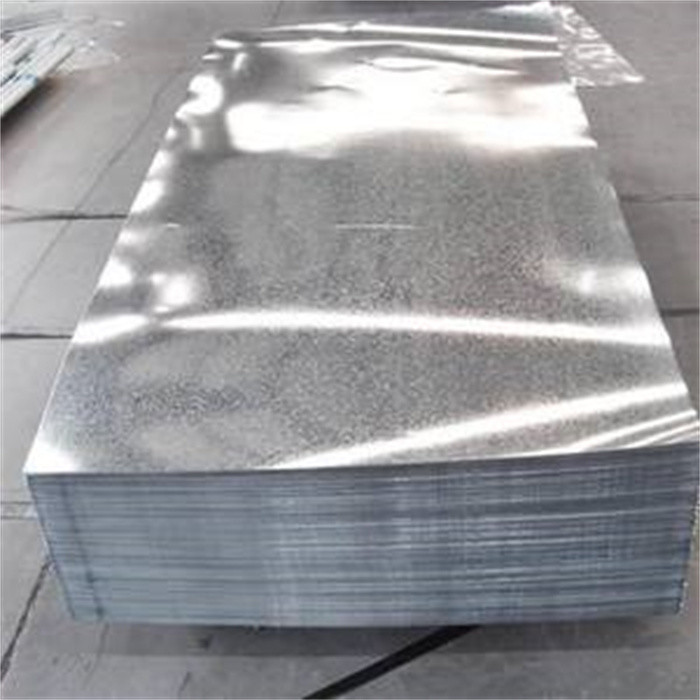

ASTM DX52D+Z160 0.8mm Thickness Galvanized Steel Sheet Cold-Rolled Water Tank



  • Introduction of Galvanized Steel Sheets



    The first and foremost method for galvanization is hot-dip galvanizing. The process is very similar to what the name suggests! In this method, steel or iron is dipped in a molten pool of zinc that maintains a temperature of around 860°F (460 °C). This molten bath begins a metallurgical bond between the zinc and the receiving metal. After the metal is pulled from the bath, it reacts to being exposed to the atmosphere, and the pure zinc mixes with oxygen to form zinc oxide. The zinc-oxide further reacts to carbon dioxide and forms zinc carbonate, which makes up the final protective coating on the material. The tell-tale sign of a hot-dipped galvanized material is the presence of a crystalline-like pattern on the surface, sometimes referred to as “spangle.”

bse metal type
Grade
CHEMICAL COMPOSITION %
C
Si
Mn
P
cold rolled steel sheet
DC51D+Z (St01Z, St02Z, St03Z) , DC51D+ZF
≤0.10
-
≤0.50
≤0.035
DC52D+Z (St04Z), DC52D+ZF
≤0.08
-
≤0.45
≤0.030
DC53D+Z (St05Z), DC53D+ZF
≤0.08
-
≤0.40
≤0.030
DC54D+Z (St06Z), DC54D+ZF
≤0.01
≤0.10
≤0.30
≤0.025
DC56D+Z (St07Z), DC56D+ZF
≤0.01
≤0.10
≤0.30
≤0.025
hot rolled steel sheet
DD51D+Z (St01ZR, St02ZR)
≤0.10
-
≤0.50
≤0.035
DD54D+Z (St06ZR)
≤0.01
≤0.10
≤0.30
≤0.025



  • Properties and Showcase of Galvanized Steel Sheets



echnical Standard
EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 JIS G3302,ASTM A653M,EN10327,DIN17162,EN 10142,EN10292,
Steel Grade
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,
SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ
CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement
Type
Coil/Sheet/Plate/Strip
Thickness
0.12-6.00mm,or customer's requirement
Width
600mm-1500mm, according to customer's requirement
Type of Coating
Hot Dipped Galvanized Steel(HDGI)
Zinc Coating
30-275g/m2
Surface Treatment
Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) galvanized,PVC,black and color painting,transparent oil,anti rust oil
Surface Structure
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
Coil Weight
3-20 metric ton per coil
Package
Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by
seven steel belt.or according to customer's requirement
Export market
Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc



Water Tank DX52D Z160 0.8mm Galvanised Sheet DIN 17162 ASTM 304 Plate 0



  • Certificates

      Water Tank DX52D Z160 0.8mm Galvanised Sheet DIN 17162 ASTM 304 Plate 1





  • Company Profile

      Water Tank DX52D Z160 0.8mm Galvanised Sheet DIN 17162 ASTM 304 Plate 2





Jiangsu Xuda Steel company has deeply engaged in Chinese domestic market for over 10 years. We established perfect reputation and deep co-operations with large number of reliable patners. Our high-tech factory and well-trained workers are able to manufature best quality and highly customized metal products. The professional sales team guarantes the prefect trading experience with Xuda.

The goal of Xuda is doing our best to offer our clients best service and product quality with lowest price. We are looking forward to deal business with you!



  • FAQ



1. What is your payment terms?

Our company prefers 30%TT before inspection and the rest 70% against BL. However, our price term is negotiable. Multiple payment terms are available from us.



2. Which payment method can I choose?

Our company accepts all types of secured payment methods. Bank transaction, Alibaba Trading Assurance, Paypal and etc are all available from us. Please feel free to contact us about your preferred payment method.



3. Is sample providing service available?

Our company provides free samples to our clients. We usually also cover the sample shipping cost. Please feel free to order a sample from us.



4. Is customization available?

Our factory's expert equipment and highly-trained workers are capable of manufacturing highly customized products. Please fel free to discuss with us about your customized requirements, we can surely meet your needs.



5. What products and materials do you supply?

Our company mainly supplies all catalogs and all grades of steel and stainless steel products. Coils, strips, sheet, pipes, bars, beams, flanges and other customized products. Tin coating, Ti coating, galvanization and other surface treatments are also available.

Other than steel products, we also has high production capacity and holds large ready stock of all kinds of copper and aluminum products. Please feel free to consult us about any related products above, we can surely meet your requirements.



6. Why should I choose you?

Our company has deeply engaged in metal material market for over 15 years. We established perfect reputation world-widely. Craftsmanship spirit is the fundamental of Xuda Steel since we are established. Xuda Steel keeps our products as highest quality and lowest price to maintain our self competitive. Proving our clients with best trading experience is the goal we always insist of.



7. How can I make sure you are a reliable supplier?

Our company is willing to provide our copies of company registration certificate, Alibaba registration and Chinese exporting registration for you to view. These certificates are under Chinese Trading Law effect. They can help you officially check our company s capability and status.

On the products' side, certificates as Mill Test Certificate(MTC), Third Party Material Quality Conformity Certificate and other required certificates are available before the order. Samples are also available from us for you to test in your own testing facility. Xuda Steel also supports third-party inspection before shipping. Xuda Steel also welcomes a company tour for you to check our factory status.
