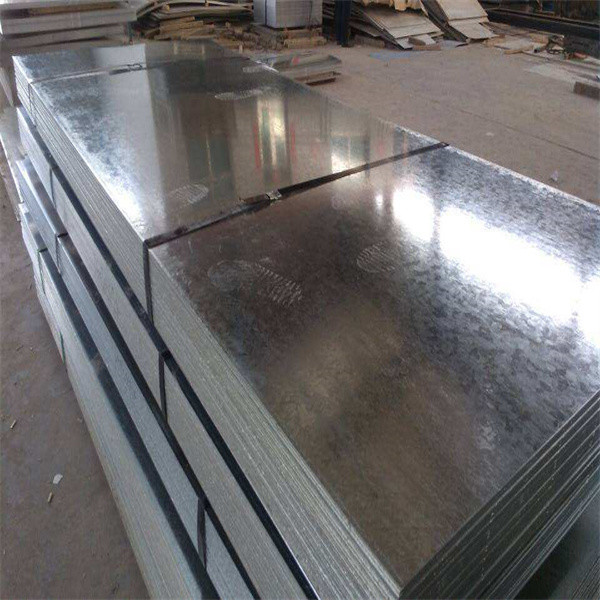

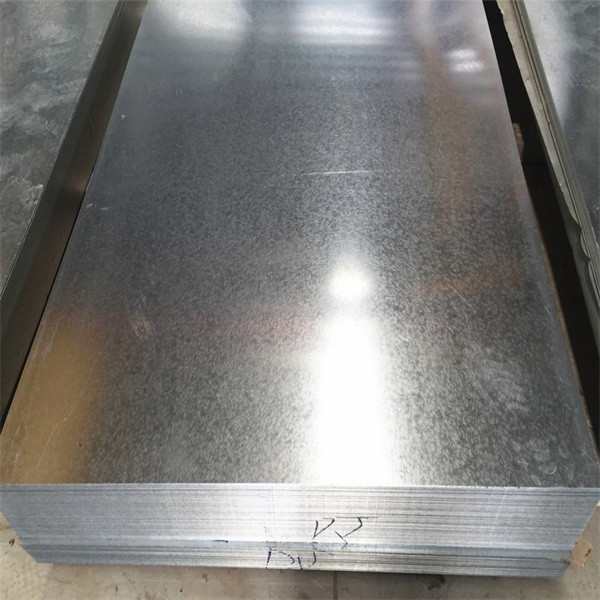

AISI DX51D Z100 Hot Dipped Galvanized Steel Sheets Phosphating Galvanised 12mm Sheet

1 ton
MOQ
Negotiation
Price
AISI DX51D Z100 Hot Dipped Galvanized Steel Sheets Phosphating Galvanised 12mm Sheet
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Galvanized Steel Sheets
Technique: Cold-rolled Hot-dipped
Thickness: 12mm
Grade: DX51D
Zinc Layer: 100g
Width: 1250mm
Standard: AISI
Length: 2438mm
Color: Sliver
Certificate: ISO
Highlight:

AISI Hot Dipped Galvanized Steel Sheets

,

DX51D Z100 Hot Dipped Galvanized Steel Sheets

,

Phosphating galvanised 12mm sheet

Basic Infomation
Place of Origin: China
Brand Name: XUDA
Payment & Shipping Terms
Packaging Details: Standard seaworthy packing
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 ton per month
Product Description

DX51D+Z100 Galvanized Steel Sheet Cold-rolled Hot-dipped AISI 12mm thickness Industry Use

Product Description

  • Introduction of Galvanized Steel Sheets

       Hot-dip galvanizing is the reaction of molten metal with an iron substrate to produce an alloy layer, thereby combining the
substrate and the plating layer. Hot-dip galvanizing is to pickle iron and steel parts first. In order to remove iron oxide on the surface of iron and steel parts, after pickling, it is cleaned in an ammonium chloride or zinc chloride aqueous solution or a mixed solution of ammonium chloride and zinc chloride.And then sent to the hot-dip plating bath. Hot-dip galvanizing has the advantages of uniform coating, strong adhesion and long service life.

What are advantages of galvanized steel?
Because it is produced through applying Zn coat on both sides by hot dip process. It enjoys both the physical protective feature and the electrochemical protective property of Zn.
>>Machinability: It can satisfy the processing requirements of rolling, coiling and others processes alike.
>>Thermal resistance: Common HDG steel plate normally works under 230℃, and has its color changed at 250℃, however, Galvanized steel plate can sustain the environment at 315℃ for long time.
>>High reflectivity: Reflection ability of heat and light is twice as much as those of hot-dip zinc steel sheet, and its
reflectivity is more than 0.70, which is an ideal construction materials of saving energy.



  • Properties and Showcase of Galvanized Steel Sheets



Technical Standard
EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
Grade
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD,S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22(230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275),SQ CR50 (340), SQ CR80 (550); or As Requirement
Type
Coil/Sheet/Plate/Strip
Thickness
0.12-6.00mm,or customer's requirement
Width
600mm-1500mm, according to customer's requirement
Zinc Coating
30-275g/m2
Surface Treatment
Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
Surface Structure
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
Application
Building and Construction:Roofing,Terrace,Window Frame;Door:Rolling Door,Shutter,Mobile House;Interior Decorations,Wall,Door Frame
Steel Structure:Screen,Ceiling,Elevator,
Household Appliances:Fridge,Washing Machine,Microwave Oven,Air-Conditioner,Duplicating Machine,etc
Transportation;Auto Panel,Interior Decorative Panel,Carriage Panel



AISI DX51D Z100 Hot Dipped Galvanized Steel Sheets Phosphating Galvanised 12mm Sheet 0



  • Certificates

      AISI DX51D Z100 Hot Dipped Galvanized Steel Sheets Phosphating Galvanised 12mm Sheet 1





  • Company Profile

      AISI DX51D Z100 Hot Dipped Galvanized Steel Sheets Phosphating Galvanised 12mm Sheet 2





Jiangsu Xuda Steel company has deeply engaged in Chinese domestic market for over 10 years. We established perfect reputation and deep co-operations with large number of reliable patners. Our high-tech factory and well-trained workers are able to manufature best quality and highly customized metal products. The professional sales team guarantes the prefect trading experience with Xuda.

The goal of Xuda is doing our best to offer our clients best service and product quality with lowest price. We are looking forward to deal business with you!



  • FAQ



1. What is your payment terms?

Our company prefers 30%TT before inspection and the rest 70% against BL. However, our price term is negotiable. Multiple payment terms are available from us.



2. Which payment method can I choose?

Our company accepts all types of secured payment methods. Bank transaction, Alibaba Trading Assurance, Paypal and etc are all available from us. Please feel free to contact us about your preferred payment method.



3. Is sample providing service available?

Our company provides free samples to our clients. We usually also cover the sample shipping cost. Please feel free to order a sample from us.



4. Is customization available?

Our factory's expert equipment and highly-trained workers are capable of manufacturing highly customized products. Please fel free to discuss with us about your customized requirements, we can surely meet your needs.



5. What products and materials do you supply?

Our company mainly supplies all catalogs and all grades of steel and stainless steel products. Coils, strips, sheet, pipes, bars, beams, flanges and other customized products. Tin coating, Ti coating, galvanization and other surface treatments are also available.

Other than steel products, we also has high production capacity and holds large ready stock of all kinds of copper and aluminum products. Please feel free to consult us about any related products above, we can surely meet your requirements.



6. Why should I choose you?

Our company has deeply engaged in metal material market for over 15 years. We established perfect reputation world-widely. Craftsmanship spirit is the fundamental of Xuda Steel since we are established. Xuda Steel keeps our products as highest quality and lowest price to maintain our self competitive. Proving our clients with best trading experience is the goal we always insist of.



7. How can I make sure you are a reliable supplier?

Our company is willing to provide our copies of company registration certificate, Alibaba registration and Chinese exporting registration for you to view. These certificates are under Chinese Trading Law effect. They can help you officially check our company s capability and status.

On the products' side, certificates as Mill Test Certificate(MTC), Third Party Material Quality Conformity Certificate and other required certificates are available before the order. Samples are also available from us for you to test in your own testing facility. Xuda Steel also supports third-party inspection before shipping. Xuda Steel also welcomes a company tour for you to check our factory status.
